| Herkunftsort: | China |
|---|---|
| Markenname: | KAD |
| Zertifizierung: | CE/ISO9001 |
| Modellnummer: | CDD20 |
| Min Bestellmenge: | 1 |
| Preis: | $7199 |
| Verpackung Informationen: | Eisenpalette + Kunststofffolie |
| Lieferzeit: | 15 Arbeitstage |
| Zahlungsbedingungen: | L/C, D/A, D/P, T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 50 Einheiten/Monat |
| Modell Nr.: | CDD20 | Tragfähigkeit: | 1-2Tons |
|---|---|---|---|
| Lastzentrum: | 500mm | Hubhöhe: | 1 bis 10 m |
| Batteriekapazität: | 24V/280AH | Gabel-Größe: | 1220*100*40 mm |
| Bodenfreiheit: | 30mm | Wenderadius: | 1500 mm |
| Fahrgeschwindigkeit: | 4km/h | Steigung: | 3°/5° |
| Antriebsmotor: | 0,8 kW | Motorhubmotor: | 0,8 kW |
| Reifengröße: | 300/250 mm | Gesamtgröße: | 2570*1390*2200mm |
| Gewicht: | 2800kg |

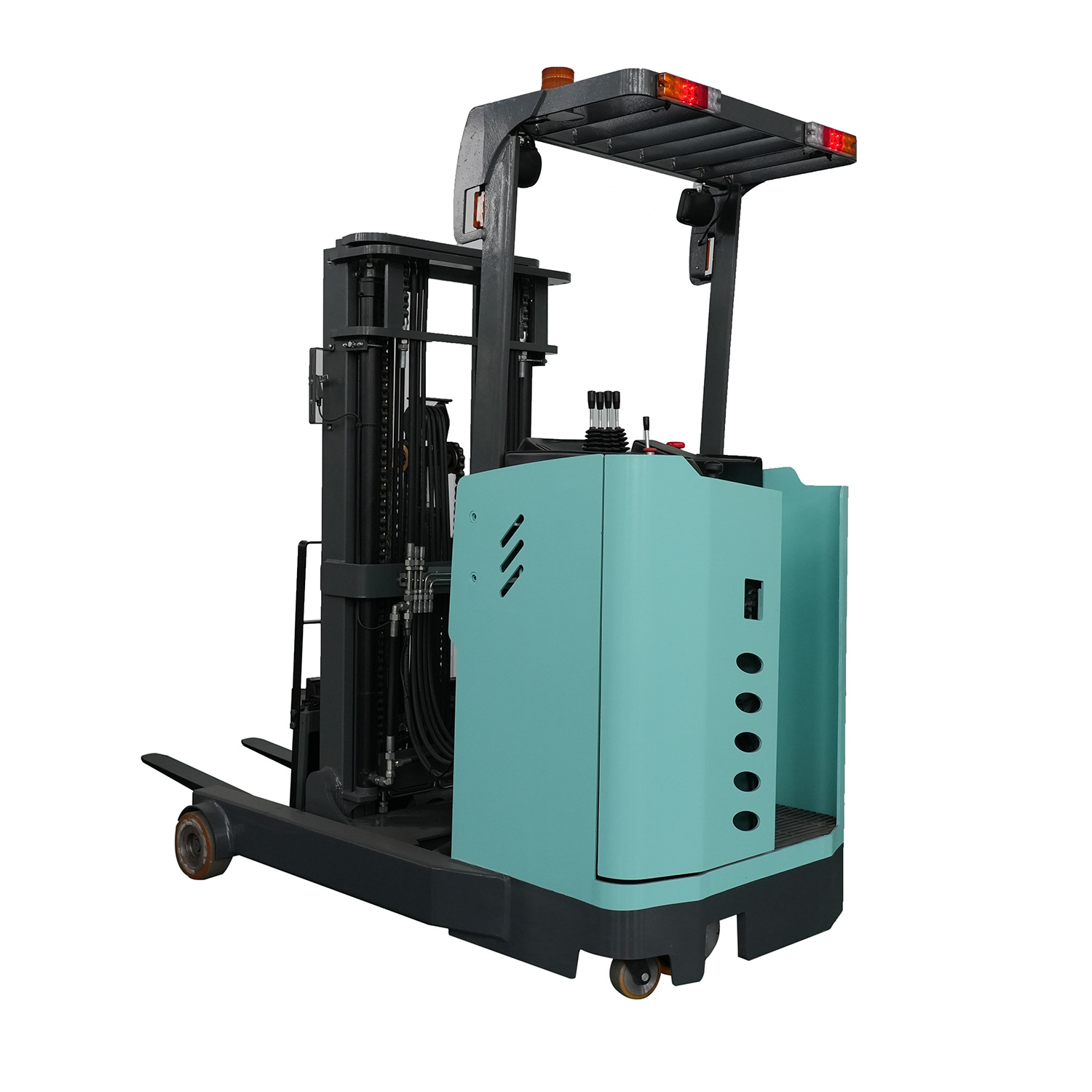

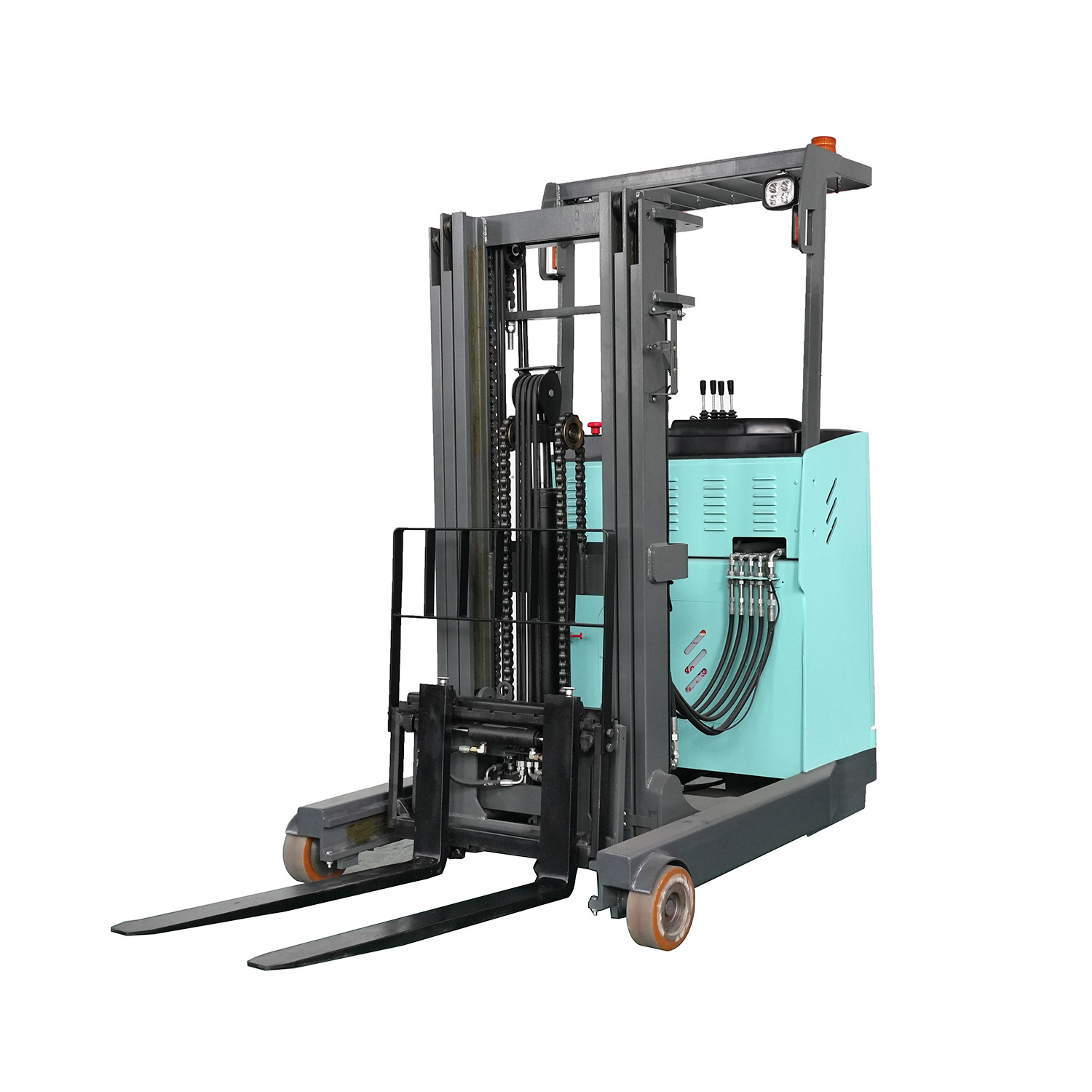

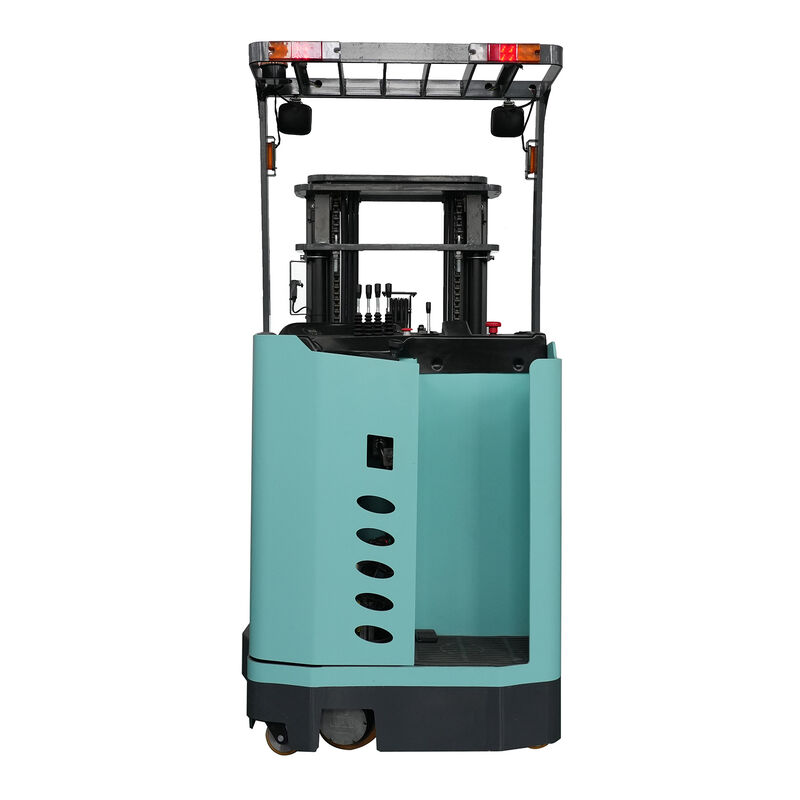

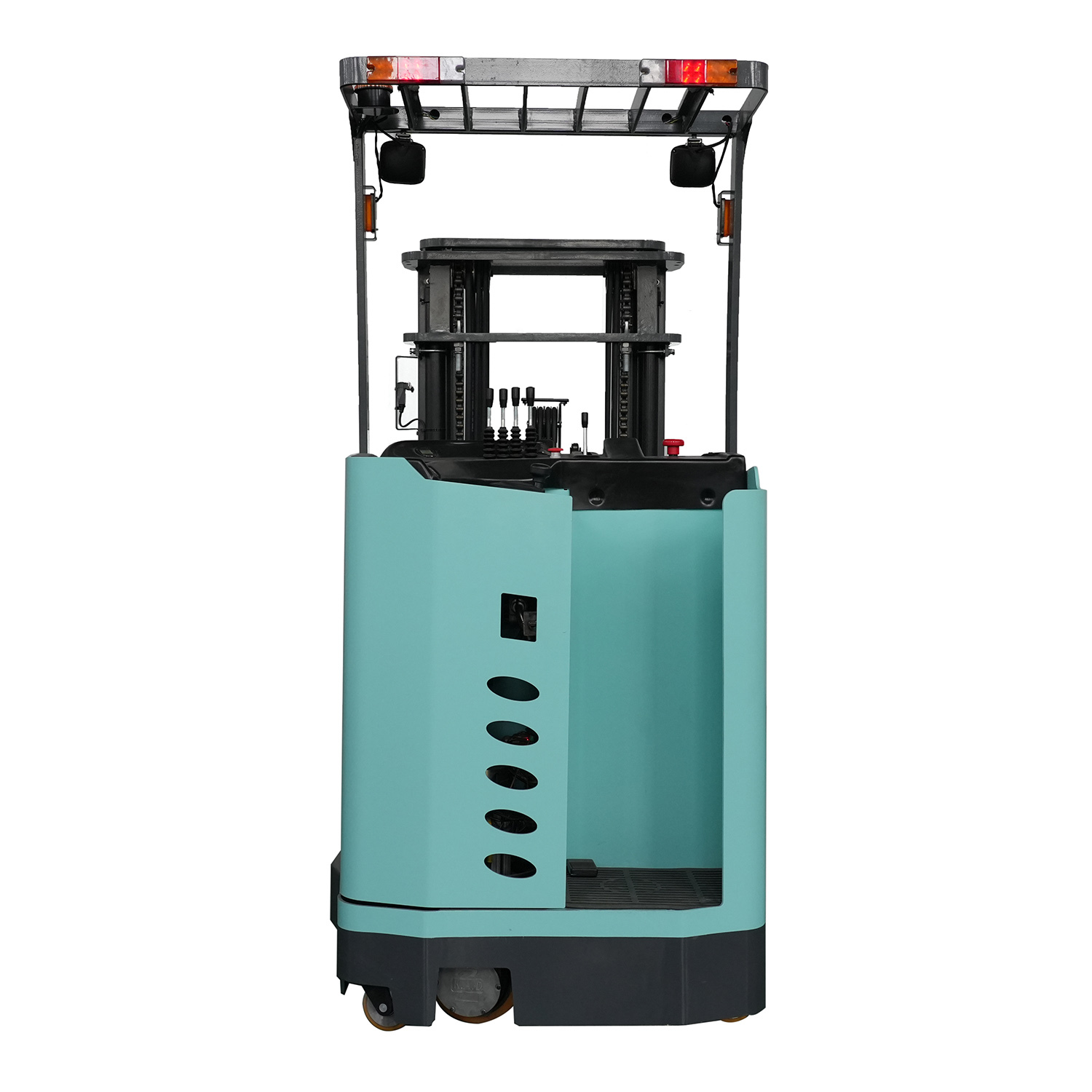

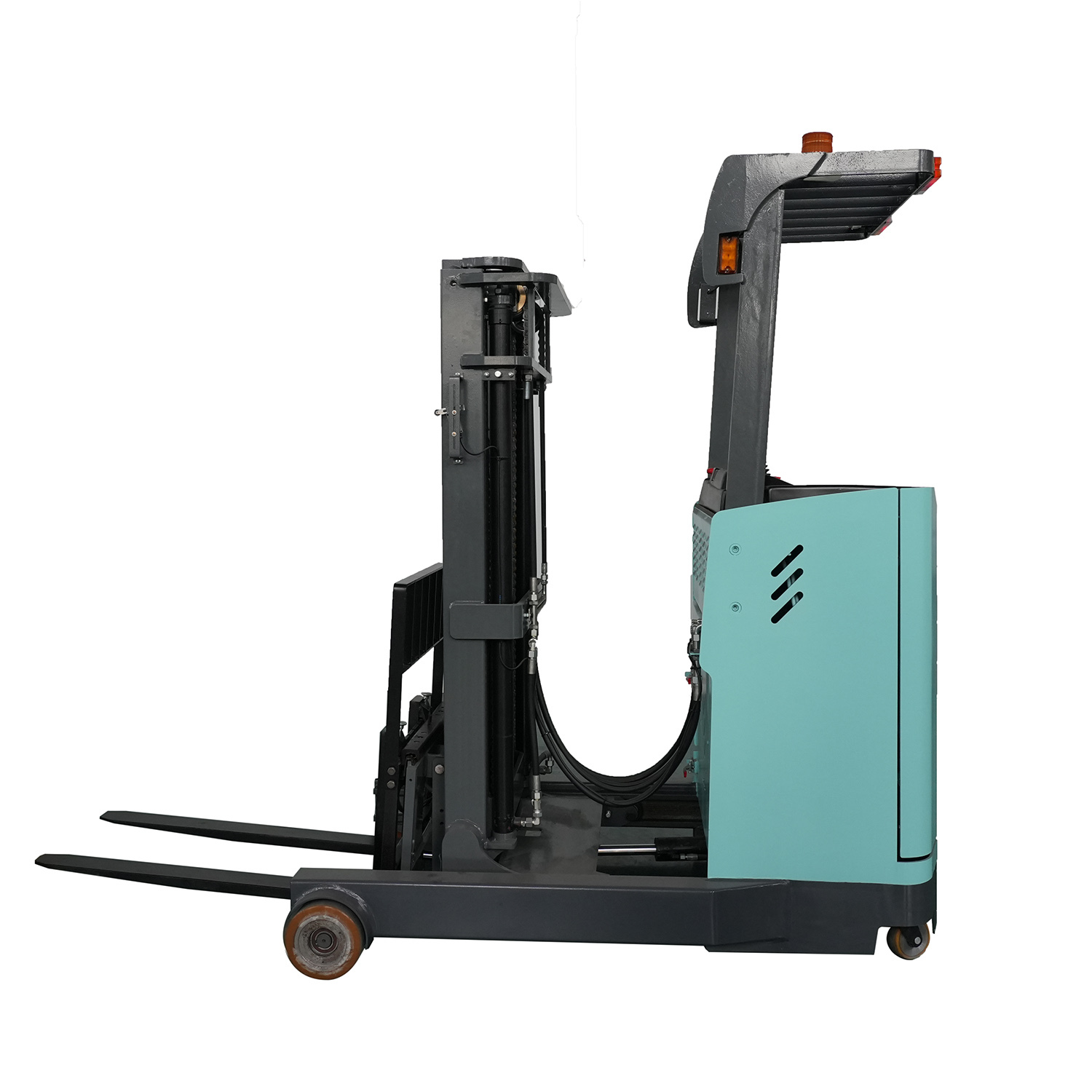

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
Model
|
|
CQDS1530
|
CQDS2030
|
|
Load Capacity
|
kg
|
1500
|
2000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
