1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height

1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height
Grundlegende Informationen
Herkunftsort: Jiangsu, China, KN; JIA
Markenname: KAD
Min Bestellmenge: 1
Preis: $1,280-1,680
Bestpreis Kontakt
Gabellänge: 1070 mm Gabel-Breite: 680 mm
Antriebstyp: FWD Lastzentrum: 500 mm
Bewertungskapazität: 1,5 Tonnen Hebenshöhe: 1600 mm bis 3000 mm
Power -Typ: Gleichstromkraft Gewicht: 495 kg
Belastungskapazität: 1,5 Tonne Fahrgeschwindigkeit: 5,0 mm/s (leer/Volllast)
Hubgeschwindigkeit: 140/135 mm/s (leer/Volllast) Sinkgeschwindigkeit: 150/155 mm/s (leer/Volllast)
Maximale Steigung: 7/5 ° (leer/Volllast) Antriebsmotor: DC/0,75 kW
Motorhubmotor: Gleichstrom/2,2 KW
Hervorheben:

1.5 ton electric pallet stacker

,

electric pallet stacker 3000mm lifting height

,

electric pallet stacker with warranty

Electric Forklift 1.5ton 1500kg Walkie Electric Pallet Stacker With Straddle Leg Adjustable Fork
Product Specifications
Attribute Value
Condition New
Fork Length 1070mm
Fork Width 680mm
Drive Type FWD
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Advertising Company, Other
Operating Mode Standing Operation
Terrain Adaptability Indoor Flooring, Outdoor Pavement, other
Load Center 500 mm
Color Customized
Rated loading capacity 1.5ton
Lifting height 1600mm-3000mm
Power type DC Power
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Engine
Weight (KG) 495
Power Source DC MOTOR
Warranty 1 Year
Type Stacker Forklift
Load Capacity 1.5 ton
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 0 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 1
The walkie stacker is easy to operate, requiring only basic training to master, making it suitable for various workers. Its compact size and light weight allow it to maneuver flexibly in tight spaces, ideal for use in warehouses and factories. It boasts strong safety features, including emergency brakes, speed limiters, and anti-slip functions, ensuring operator safety. Additionally, the walking operation method enables operators to have better control over the vehicle, reducing the risk of accidents.
Technical Specifications
Model CDDW10 CDDW15
Features Drive system Battery
Driving mode Walkie
Load Capacity Q KG 1000
Load Center C MM 500
Weight Weight(With battery) KG 480/495/515/535
Wheels Material PU
Size Lifting Height H3 MM 1600/2000/2500/3000/4000
Lowest Mast H1 MM 2080/1580/1830/2080/1580
Max.Height when operating H4 MM 2080/2730/3230/3730/4750
Min.Height of Fork H13 MM ≤90
Length L1 MM 1770
Width B1 MM 850
Size Fork Length L MM 1070
Wheelbase Y MM 1250
Fork Outside Width B5 MM 680
Fork Inside Width MM 305
Min.Turning Radius WA MM 1390
Performance Driving Speed (Empty/Full Load) MM/S 5.0/5.0
Lifting Speed (Empty/Full Load) MM/S 140/135
Descending Speed (Empty/Full Load) MM/S 150/155
Max.Gradient (Empty/Full Load) ° 7/5
Brake Electromagnetic brake
Driving Motor KW DC/0.75
Lifting Motor KW DC/2.2
Battery Capacity V/Ah 24/80/100;Li/gel
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 2 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 3 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 4 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 5
Main Features
  • Using Curtis controller, which can be serviced by any forklift service company around the world.
  • With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.
  • Maintenance-free batteries, no need to add water.
  • High strength fork
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 6 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 7
Main Parts
Name: Control Handle
Brand: KAD
Domestic famous control handle, functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.
Night Operation Lights
It can play a great role in warehouses with insufficient lighting.
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 8 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 9
Reverse Rearview Mirror and Buzzing Sound
Some companies, in order to save costs, do not install this safety device on walkie stacker. We have added safety devices while ensuring a price advantage.

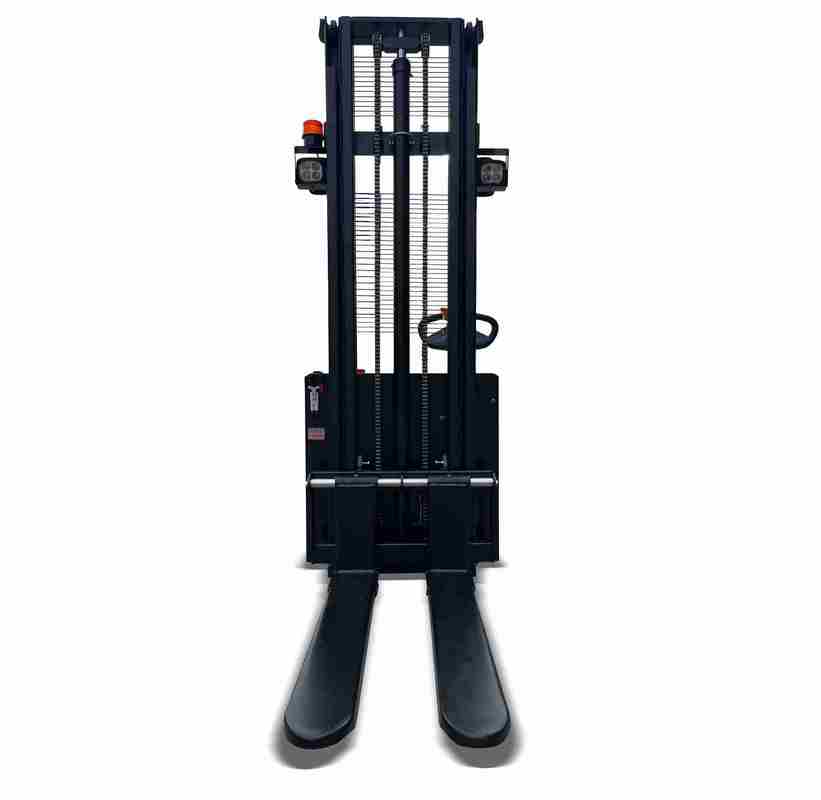

Durable Mast
High strengthen durable mast, which is 3-stage and support heavy load at 4-4.5m
1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 10 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 11 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 12 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 13 1.5 Ton Electric Pallet Stacker with 1600-3000mm Lifting Height 14
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
